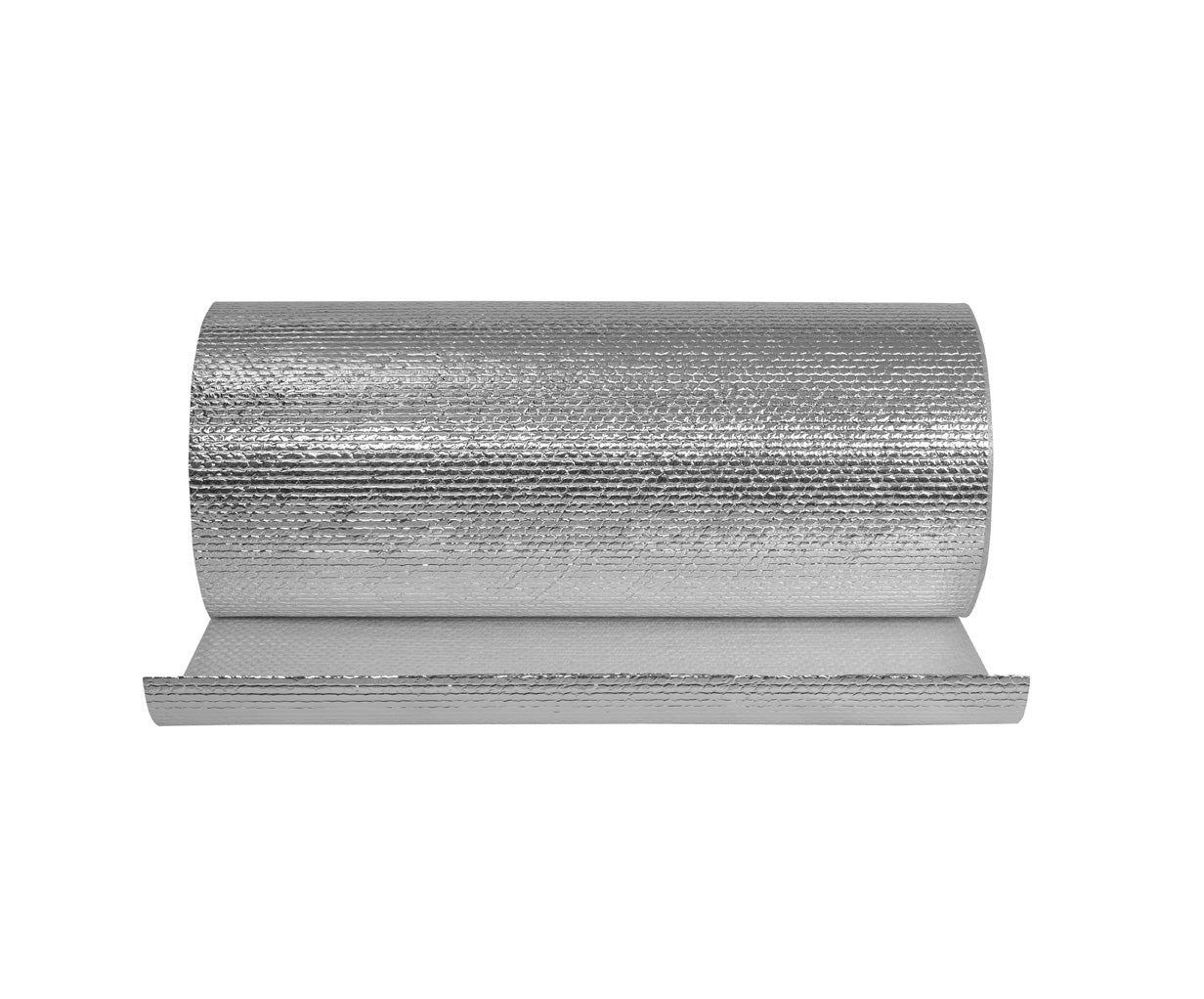

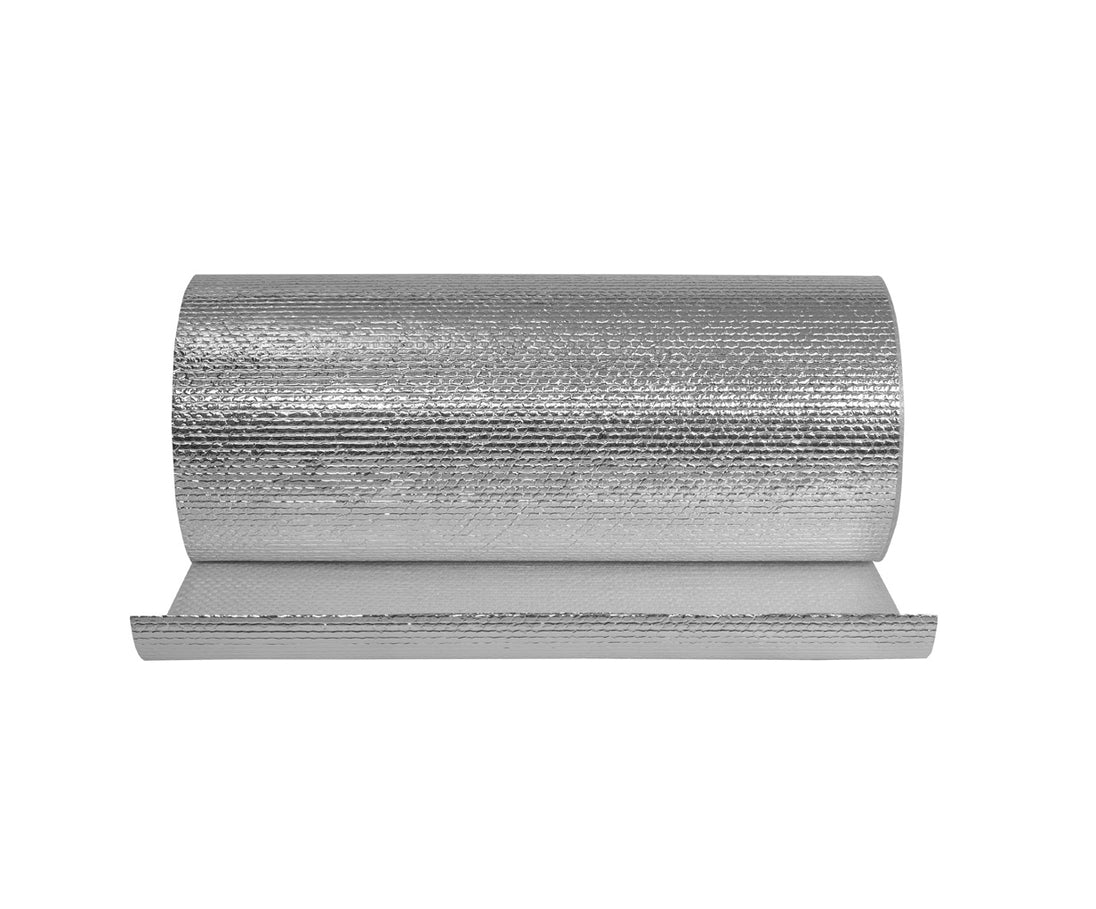

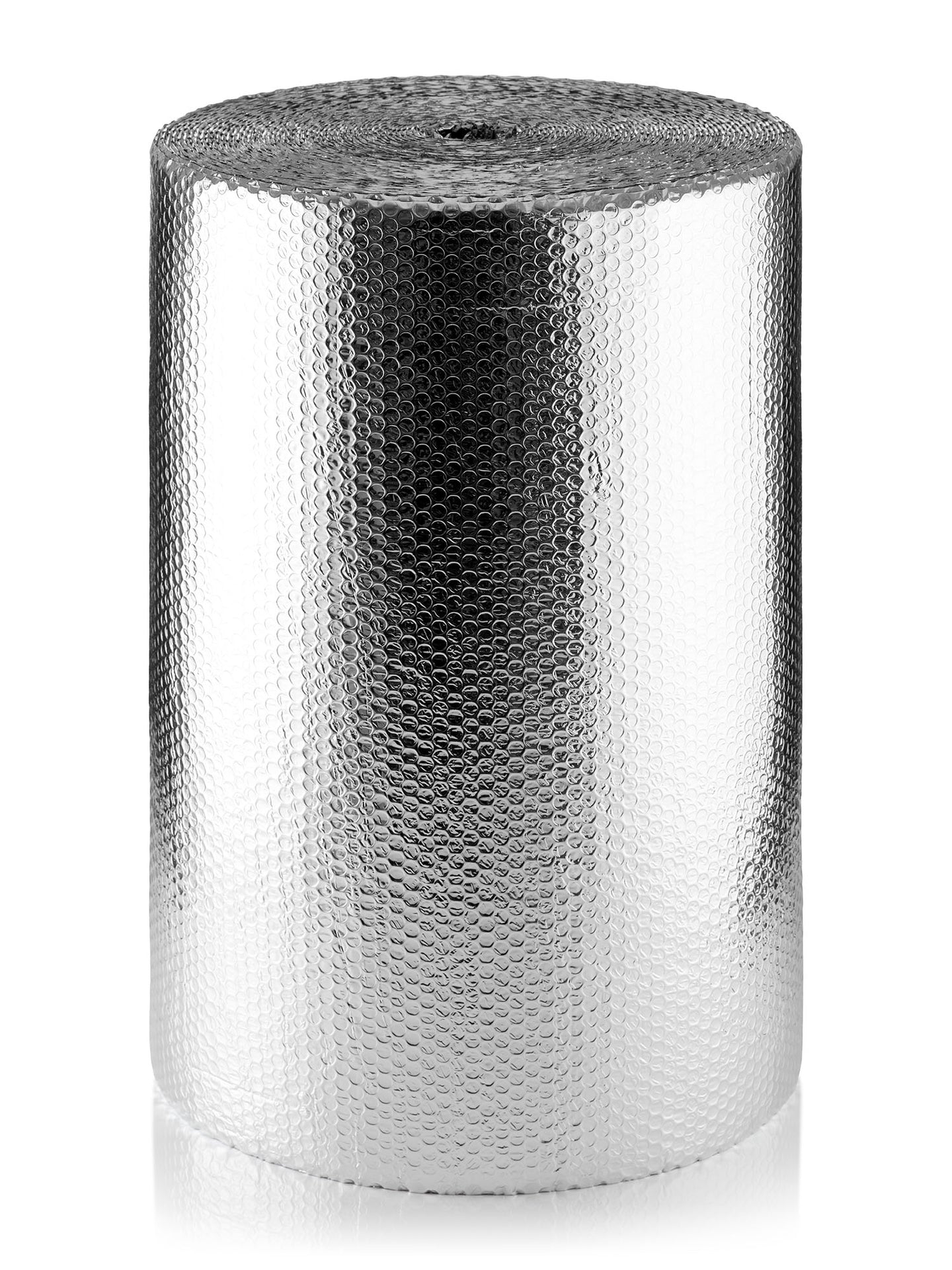

SuperFOIL SFBA 2/2 Bubble Foil Insulation – Enhanced 3-in-1 Reflective Solution

Compared to SFBA MP, SuperFOIL SFBA 2/2 uses a higher-performing bubble foil construction, providing improved thermal performance while maintaining a slim, lightweight, and easy-to-install format.

SuperFOIL SFBA 2/2 is a multi-layer bubble foil insulation designed for use in roofs, walls, and floors. It combines insulation, a radiant barrier, and a vapour control layer (VCL) in one flexible product, making it ideal for new builds, retrofits, timber-frame construction, and DIY projects.

This is a vapour-closed bubble foil insulation designed for internal applications where reflective thermal performance and moisture control are required.

SFBA 2/2 provides approximately 15–20% higher thermal resistance than SFBA MP, while maintaining the same slim, lightweight bubble foil format — ideal where improved insulation is required without increasing build-up depth.

For enhanced bubble foil systems such as SuperFOIL SFBA 2/2, internal comparative assessments indicate approximately 15–20% higher thermal resistance compared to SuperFOIL SFBA MP, when installed with adjacent air spaces under typical installation conditions. As a general reference, internal comparative assessments indicate that SuperFOIL SFBA MP, when installed with air spaces on both sides, can provide thermal performance broadly comparable to approximately 50 mm of expanded polystyrene (EPS) or 30 mm of extruded polystyrene (XPS). Based on this proportional comparison, SFBA 2/2 may achieve correspondingly higher indicative thermal performance depending on installation method, air gap configuration, and overall construction build-up.

These comparisons are provided for indicative comparison purposes only. Exact thermal performance must always be verified using the certified R-Values of each product and, where required, project-specific thermal calculations.

Product Dimensions & Coverage

• Thickness: 6 mm

• Length: 25 m

• Width: 1.2 m

• Weight: 7.5 kg

• Coverage: up to 30 m² per roll

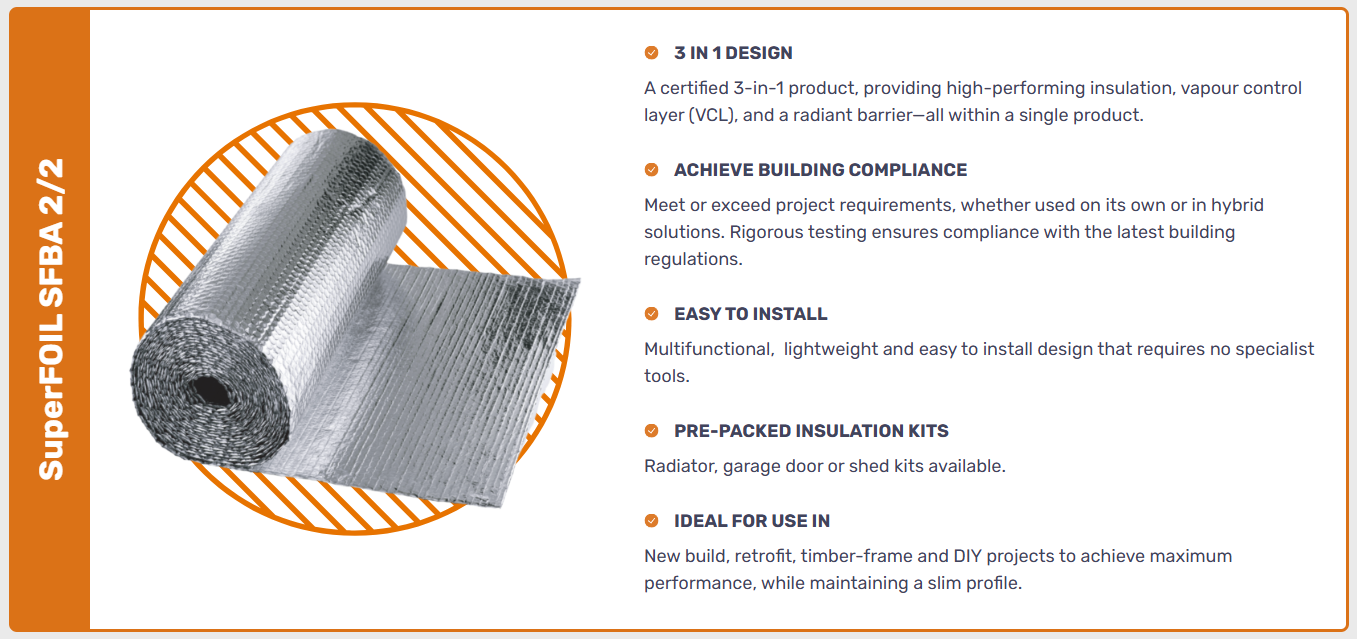

3-in-1 Multifunctional Design

SuperFOIL SFBA 2/2 combines three essential functions in a single product:

• Reflective thermal insulation

• Radiant barrier reflecting up to 95% of radiant heat

• Integrated vapour control layer (VCL)

This integrated design reduces the need for multiple layers and improves overall thermal efficiency with minimal build-up depth.

Thermal Performance

SFBA 2/2 utilises low emissivity air gaps to maximise thermal performance when installed with air spaces.

Certified thermal performance (core value + air spaces, EN 16012):

• Core R-Value: 0.14 m²K/W

• Roof (incl. air spaces): 1.05 m²K/W

• Wall (incl. air spaces): 1.47 m²K/W

• Floor (incl. air spaces): 1.67 m²K/W

• Emittance: 0.05

What does R-Value mean?

R-Value (m²K/W) measures a material’s resistance to heat flow.
The higher the R-Value, the better the insulation performance.

What does Emittance mean?

Emittance measures how much heat a surface emits (radiates).

A low emittance value (typically around 0.05) means very low heat emission and high reflection of radiant heat, improving overall thermal performance when installed with adjacent air spaces.

This interpretation is aligned with EN 16012 and reflects how reflective multifoil insulation performance is evaluated across EU technical documentation.

Performance vs Traditional Insulation

Traditional insulation materials rely primarily on thickness and mass. SuperFOIL SFBA 2/2 delivers thermal benefits through reflective insulation technology, making it a practical solution where space is limited or where insulation is being upgraded.

Exact thermal performance depends on the complete build-up and air space configuration.

Key Benefits

• Improved thermal performance compared to standard bubble foil products

• Reflects up to 95% of radiant heat

• Slim and lightweight construction

• Waterproof and moisture-resistant

• Corrosion-resistant aluminium layers for increased lifespan

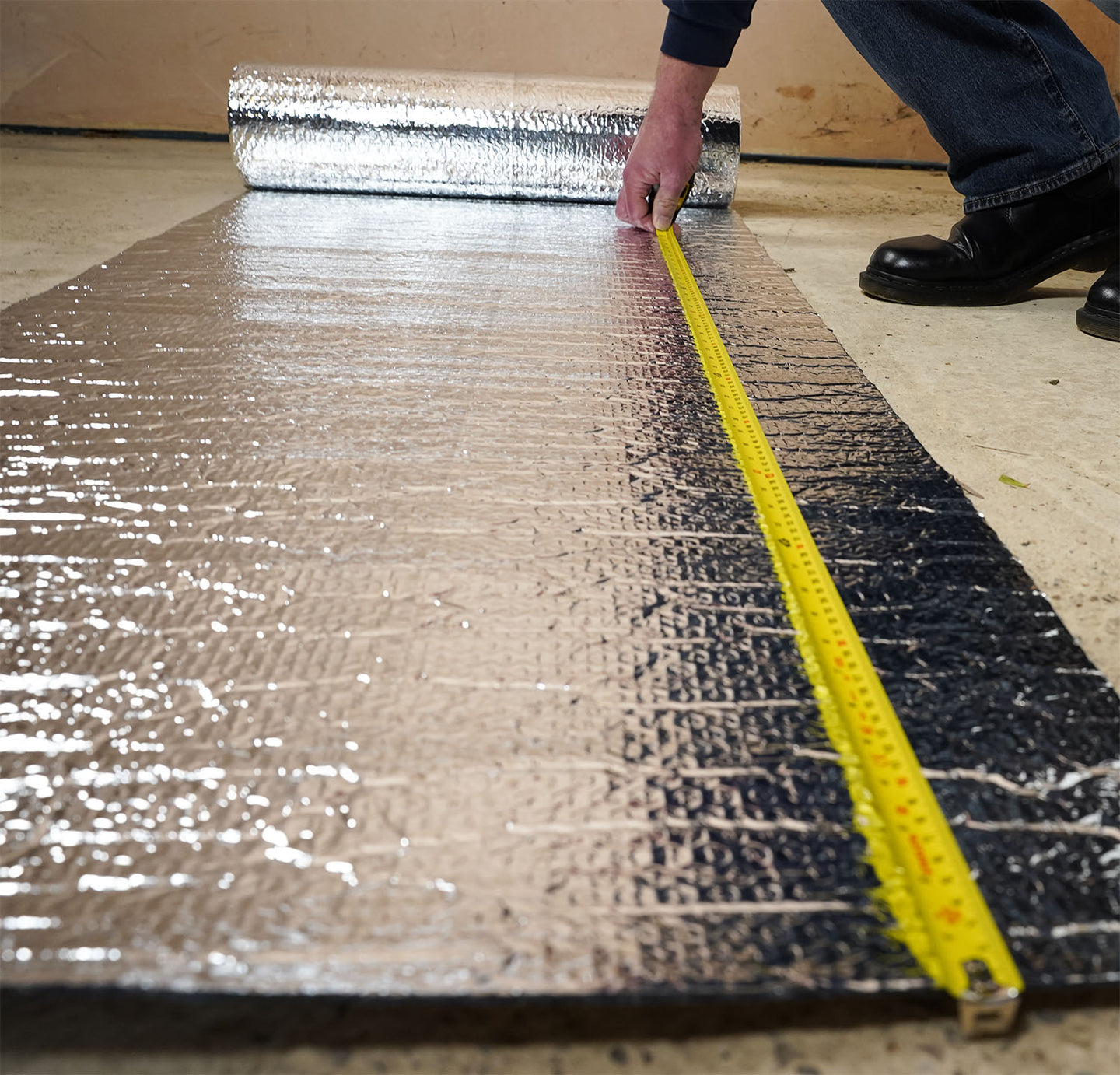

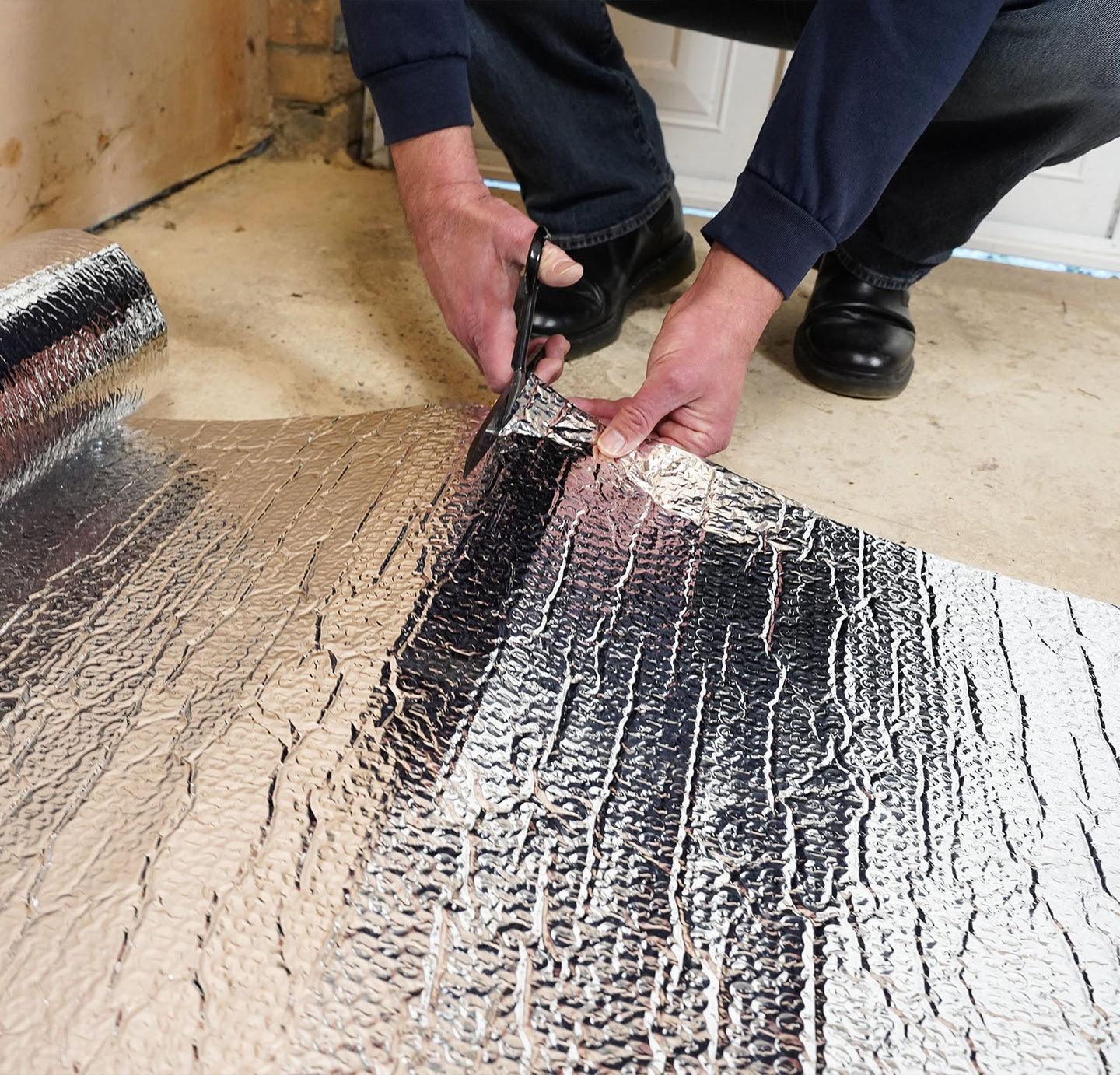

• Easy to cut and install

• No specialist tools required

• Minimal waste – ideal for DIY use

• Suitable for new builds and retrofits

Applications

SuperFOIL SFBA 2/2 is suitable for use in:

• Roof constructions

• Wall build-ups

• Floor structures

• Cellars, sheds, greenhouses

• Product packaging applications

To achieve best results, seal all joints and penetrations using SuperFOIL self-adhesive Reflective Foil Tape.

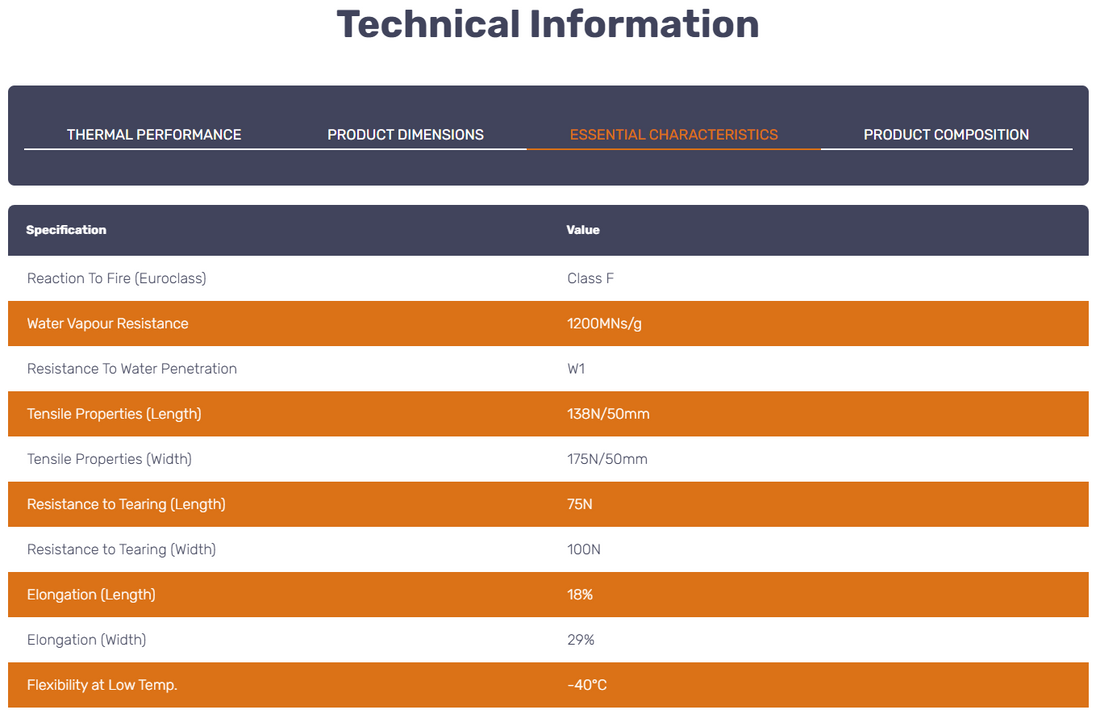

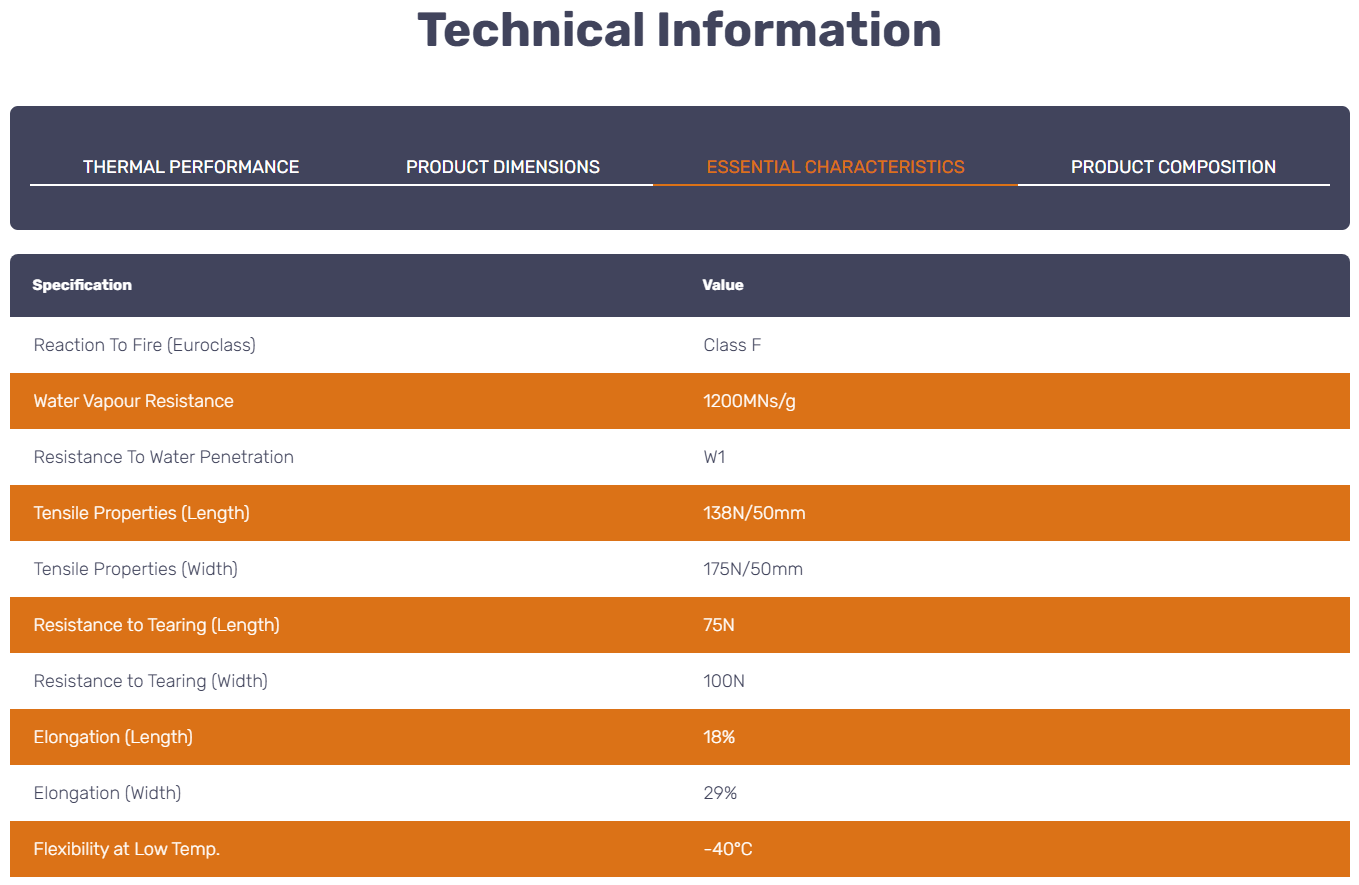

Fire & Safety Performance

• Reaction to Fire (Euroclass): Class F

SFBA 2/2 – Quality & Certification

• Manufactured under a certified ISO 9001:2015 quality management system

• CE certified to EN 13984:2013 for vapour control performance

• Tested to meet current UK and EU building regulations when installed correctly

• Designed, tested, and supported by SuperFOIL technical specialists

Why Choose SuperFOIL SFBA 2/2? (B2B & DIY Perspective)

SFBA 2/2 is specified where a step up in performance from basic bubble foil insulation is required without increasing overall build-up thickness. It offers a practical balance of thermal efficiency, flexibility, and installation simplicity for a wide range of projects.

SuperFOIL SFBA 2/2 & Recommended Accessories

Summary

SuperFOIL SFBA 2/2 is an enhanced bubble foil insulation solution that delivers improved thermal performance, vapour control, and radiant heat reflection in a slim, easy-to-install format. Offering higher performance than SFBA MP while maintaining versatility and simplicity, it is an ideal choice for both professional and DIY insulation projects.
